Door CAD Blocks in Plan View – Complete DWG Library
Download Free Door CAD Blocks: The Ultimate 2D Library for Architects
Optimizing your architectural floor plans just got easier. Our latest collection of Door CAD blocks is designed for professional architects and engineers who need precision and speed. Stop wasting time mirroring or rotating symbols; our library provides every door model in all possible orientations.
This .dwg file is compatible with AutoCAD and all major CAD software, ensuring a seamless workflow for your residential or commercial projects.
Advanced Door Models and Opening Types
This comprehensive library includes a wide variety of door configurations to suit any spatial requirement:
- Single Leaf Swing Doors: The industry standard for interior rooms and main entrances.
- Double Leaf Swing Doors (French Doors): Perfect for grand entries, living areas, or commercial access points.
- Sliding and Pocket Doors: Ideal for space-saving designs and modern minimalist interiors.
- Folding (Bi-fold) Doors: Multi-panel systems designed for wide openings with minimal clearance.
- Angular and Corner Doors: Specialized CAD blocks for unique architectural junctions and corner layouts.
The Efficiency Advantage: 8-Position Pre-set Blocks

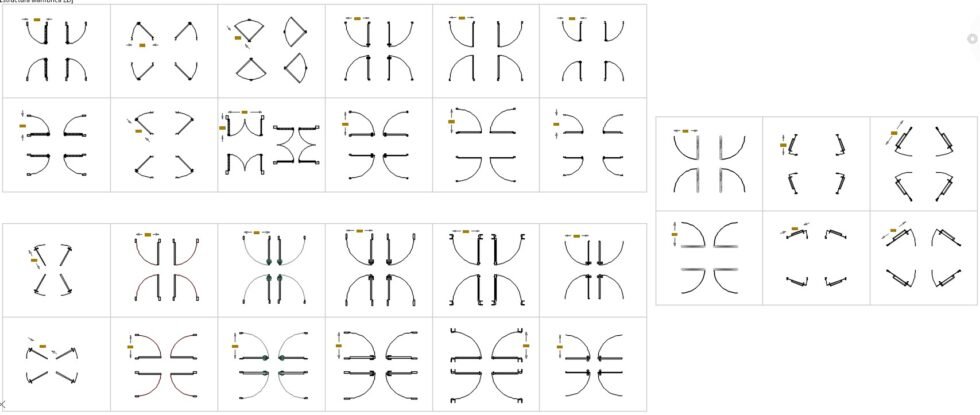

The standout feature of these Door CAD blocks is the 8-position configuration. Every model in this library is provided in 4 cardinal directions and their respective mirrored counterparts.
Why use pre-positioned blocks? It eliminates the need for the
MIRRORorROTATEcommands. Simply select the orientation that fits your wall layout and drop it into your drawing. This workflow can reduce your floor plan detailing time by up to 30%.
Technical Specifications and Dimensions
Our CAD blocks are drawn to scale and follow standard architectural metrics to ensure accuracy in your technical documentation:
- Format: .dwg (AutoCAD 2010 or higher).
- Dimensions: Standard widths ranging from 70cm, 80cm, and 90cm for single doors, up to 240cm for double systems.
- Detail Level: High-quality 2D line work featuring frames, door leaves, and precise swing path arcs.
- Layers: Organized by layers for easy line weight management and plotting.
Elevate your design quality today. Click the link below to download these Door CAD blocks for free and start streamlining your architectural workflow
