Free WC Toilet CAD Blocks – Plan and Elevation in US and Metric Units

If you need free WC toilet CAD blocks plan elevation US metric for architectural drafting, this collection provides a complete and accurate set of drawings ready for immediate use. The download includes 31 DWG files with top views, side elevations and front elevations created with industry-standard sanitary dimensions.

Download 31 Toilet CAD Blocks in Inches and Meters

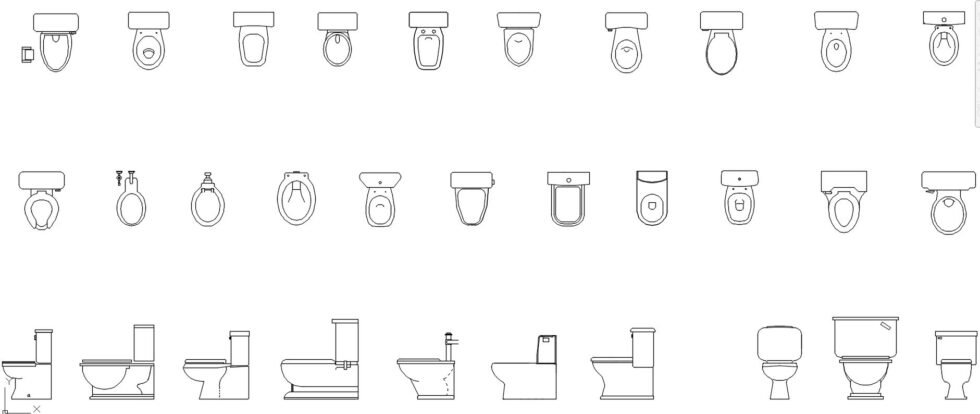

The pack contains 21 top-view plans, 7 side elevations, and 3 front elevations. The blocks are available in both inches and meters, allowing smooth integration into projects in the United States and in regions working with metric units. These toilet drawings are suitable for residential bathrooms, commercial restrooms and technical layout documentation.

• Top-view plans: rectangular, semi-rectangular and oval bowls; versions with seat cover, without cover showing the water outline, and open-front seats widely used in the US.
• Side elevations: back-to-wall toilets for easier cleaning; low-tank, high-tank and flushometer systems; typical installation geometry for modern buildings.
• Front elevations: three essential front views for sections, fit-out drawings and bathroom equipment schedules.

Main Toilet Types Included

The downloadable DWG files feature close-coupled toilets, traditional high-tank models, commercial flushometer designs and public restroom open-front seats. Each block maintains realistic bowl proportions, cistern details, mounting points and seat geometry so your floor plans and elevations remain technically consistent.

All drawings follow standard dimensions and are ready to be inserted into architectural plans, interior layouts or restroom refurbishments. If you need more resources, explore additional sanitaryware or kitchen CAD blocks from trusted manufacturers such as American Standard.

Download the complete set below. No registration is required, and the DWG files are compatible with AutoCAD and other CAD platforms. This collection is ideal for architects, designers and students who need free WC toilet CAD blocks plan elevation US metric with reliable proportions and clean drafting.
