Bathroom Fixtures CAD Blocks DWG – Accessible Shower, Wall-Hung Toilet, Corner Bathtub (Metric and inches)
Download a complete bathroom fixtures CAD block set in DWG format, developed for architects, engineers, and interior designers. This collection includes precise metric and imperial dimensions, optimized geometry, and clean layer organization for seamless use in AutoCAD and other CAD platforms.
All elements are drawn in plan view with real proportions, ensuring accuracy in layout design, documentation, and construction drawings.

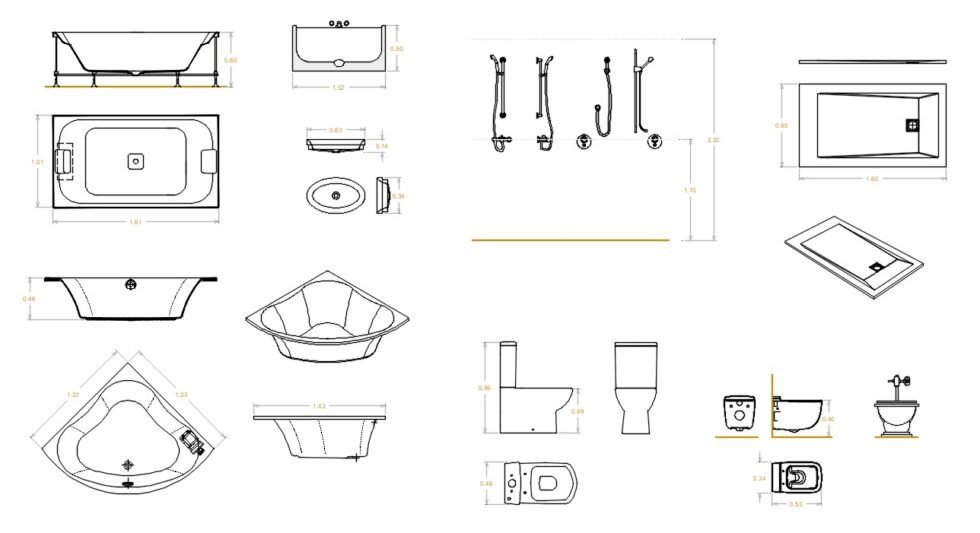

Complete Bathroom CAD Block Set with Dimensions
This DWG file includes a carefully curated selection of modern bathroom elements, combining functionality, accessibility, and design efficiency. Each block is dimensionally consistent and ready for direct insertion into professional CAD workflows.
The set integrates multiple typologies to cover residential, commercial, and accessible bathroom layouts, reducing design time and improving project standardization.
Accessible Shower Tray 90x160 cm (Ultra-Flat Design)
The collection features a 90x160 cm ultra-flat shower tray, designed for barrier-free and accessible bathrooms. Its low-profile geometry allows flush floor integration, improving usability and compliance with accessibility standards.
This type of shower is widely used in:
- Universal design projects
- Hotels and healthcare facilities
- Modern residential bathrooms
Wall-Hung and Back-to-Wall Toilet CAD Blocks
Two optimized sanitary solutions are included:
- Wall-hung toilet → frees floor space, improves cleaning access, and enhances visual lightness
- Back-to-wall toilet → eliminates rear gaps, preventing dirt accumulation and simplifying maintenance
Both options are essential in modern bathroom design, offering flexibility depending on project requirements.
Corner Bathtub 133 cm and Double Bathtub Layouts
The DWG file incorporates two distinctive bathtub configurations:
- Corner bathtub (133 cm per side) → ideal for maximizing space in compact layouts
- Double bathtub (1.01 m width) → suitable for larger bathrooms and premium designs
These blocks allow designers to explore efficient space distribution and alternative layouts.
Oval Countertop Sink 63x39 cm CAD Block
An oval sink designed for countertop installation (63x39 cm) is included, supporting modern vanity compositions. Its geometry is optimized for integration into custom furniture and modular bathroom units.
Shower Systems CAD Blocks with Installation Heights (1.10 m / 2.20 m)
The set contains 4 shower system configurations, including:
- Control valves positioned at 1.10 m height
- Overhead shower elements at 2.20 m height
These reference dimensions follow common ergonomic and installation standards, helping ensure accuracy in technical drawings.
Clean Layered DWG File for Professional Use (AutoCAD Ready)
All CAD blocks are developed with a layer-based structure, maintaining clarity and efficiency in professional workflows:
- Organized linework for easy editing
- Lightweight geometry to optimize file performance
- Compatibility with standard CAD layer management practices
The file is fully prepared for immediate use in AutoCAD, enabling fast integration into any architectural or engineering project.
